Our insulated wall panels feature a robust design that combines exterior cladding, an advanced insulation core, and a durable interior liner. This innovative construction ensures superior thermal performance and minimizes installation time.
Product Features:
Lined and flat surface type options
Pre-painted galvanized steel, stainless steel or PVC film laminated inner and outer sheet alternatives
Fire performance according to TS EN 13501-1,B1; d0 for PIR insulated cold storage panels
Production flexibility at any ordered length between 2m – 12m
Core thickness options 75-100-120-150-180-200 mm
According to TS EN 14509, U values range between 0,27 – 0,11 W/m2k depending on the panel thickness
PIR insulation alternatives
Product Features:
Wall sandwich panels PU by SDpanel were designed to fulfill several functions. The most important are: resistance to atmospheric factors, thermal insulation, aesthetics, durability, functionality and versatility. The continuous core is an additional advantage, which improves the aesthetic of the building.
The cover width provided to our customers ranges from 600–1000 mm.
Available in a variety of thicknesses from 40 mm to 150 mm.
We primarily use polyurethane material, and can also use PIR to meet requirements for high fire resistance.
The standard SD panel height is 3 m–12.5 m, and we also offer shorter or extra-long panels up to 26 m.
Facing materials include color-coated steel, aluminum, mineral steel, galvanized steel, and stainless steel.
Standard density is 38–42 kg/m², with a closed-cell rate greater than 97%.
Thermal conductivity is less than 0.023 W/m·K; operating temperature range is -185°C to +129°C.
The panel effectively prevents thermal bridges, ensures heat retention, and is energy-saving, meeting low-carbon requirements.
SD panels provide excellent air-tightness and comply with national regulations.
Product Features:
Panels are used in buildings where the high fire resistance is required
Wall panels which cover 600-1000 mm of surface enable an easy and quick assembly for various types of structures with the use of appropriate screws. Specifically designed and profiled tongue and groove joints guarantee a very good tightness and make the whole structure fireproof.
Internal and external walls in different kind of buildings, where high fire resistance is required:
Warehouses
Industrial buildings
Commercial buildings

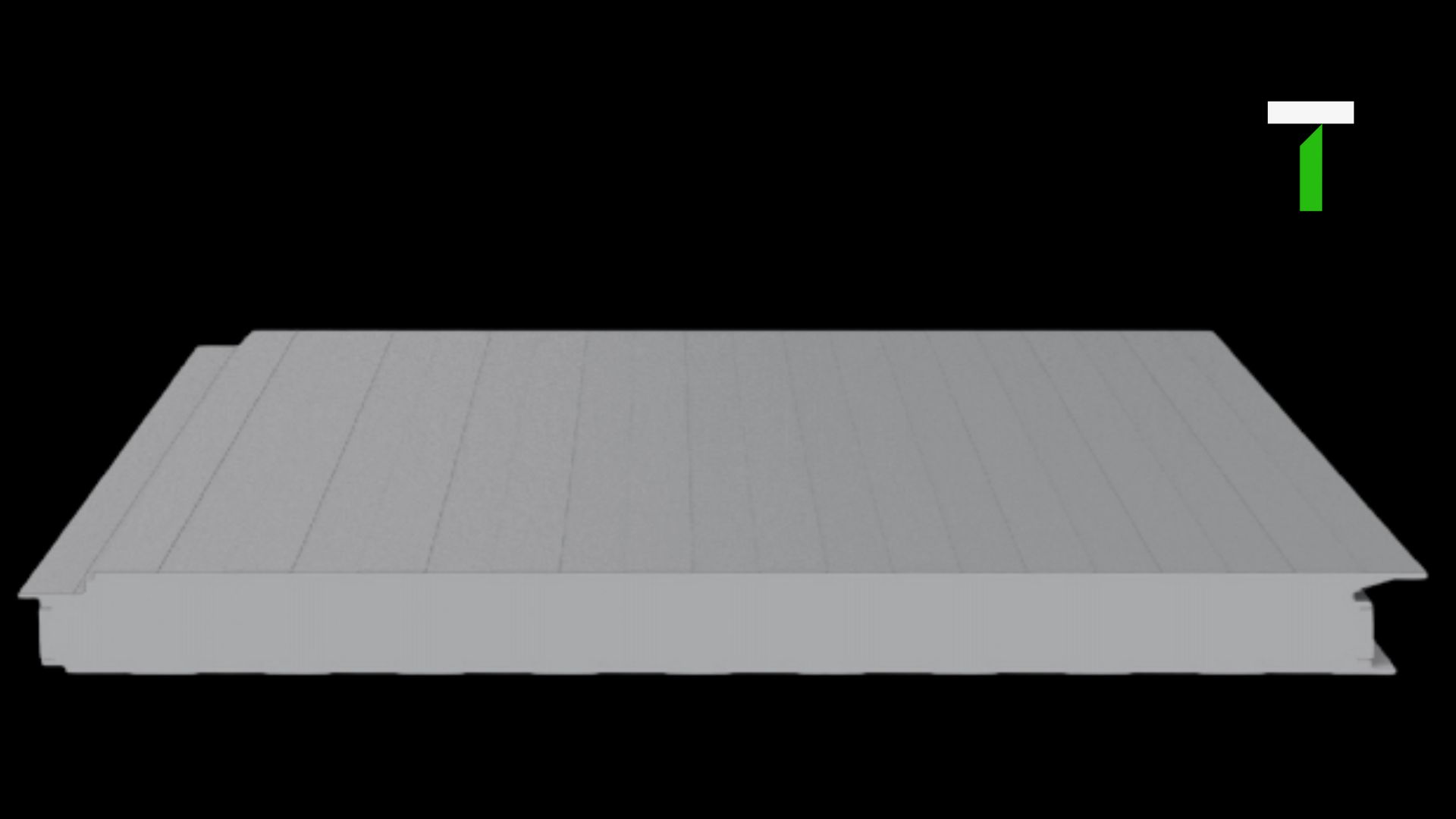

Polyisocyanurate (PIR) is a cured form of polyurethane and is the most commonly used material in the production of sandwich panels. PIR is a lightweight, rigid foam with high insulation properties and excellent fire resistance. It is also moisture-resistant and relatively low-cost due to its widespread use in building insulation products. PIR core panels are well-suited for applications such as roofing systems, wall insulation, and floor insulation, thanks to their low thermal conductivity and structural stability. These panels are available in lengths of 500–1000 mm and widths of 40–150 mm, providing flexibility to meet a variety of construction requirements.
Polyurethane (PR) core panels share many characteristics with PIR panels, offering high insulation values and excellent fire resistance. However, PR panels are generally heavier than PIR panels, resulting in slightly lower insulation properties and higher costs. They are often used in applications where the additional strength and durability of PR is required, such as high-load roofing. PR panels are also ideal for areas where a higher initial thermal resistance (R-value) is needed, as the foam retains heat more effectively. These panels are available in lengths of 500–1000 mm and widths of 40–150 mm, providing versatility for a wide range of construction needs.
Product Features:
Wall sandwich panels PU by SDpanel were designed to fulfill several functions. The most important are: resistance to atmospheric factors, thermal insulation, aesthetics, durability, functionality and versatility. The continuous core is an additional advantage, which improves the aesthetic of the building.
Product Description:

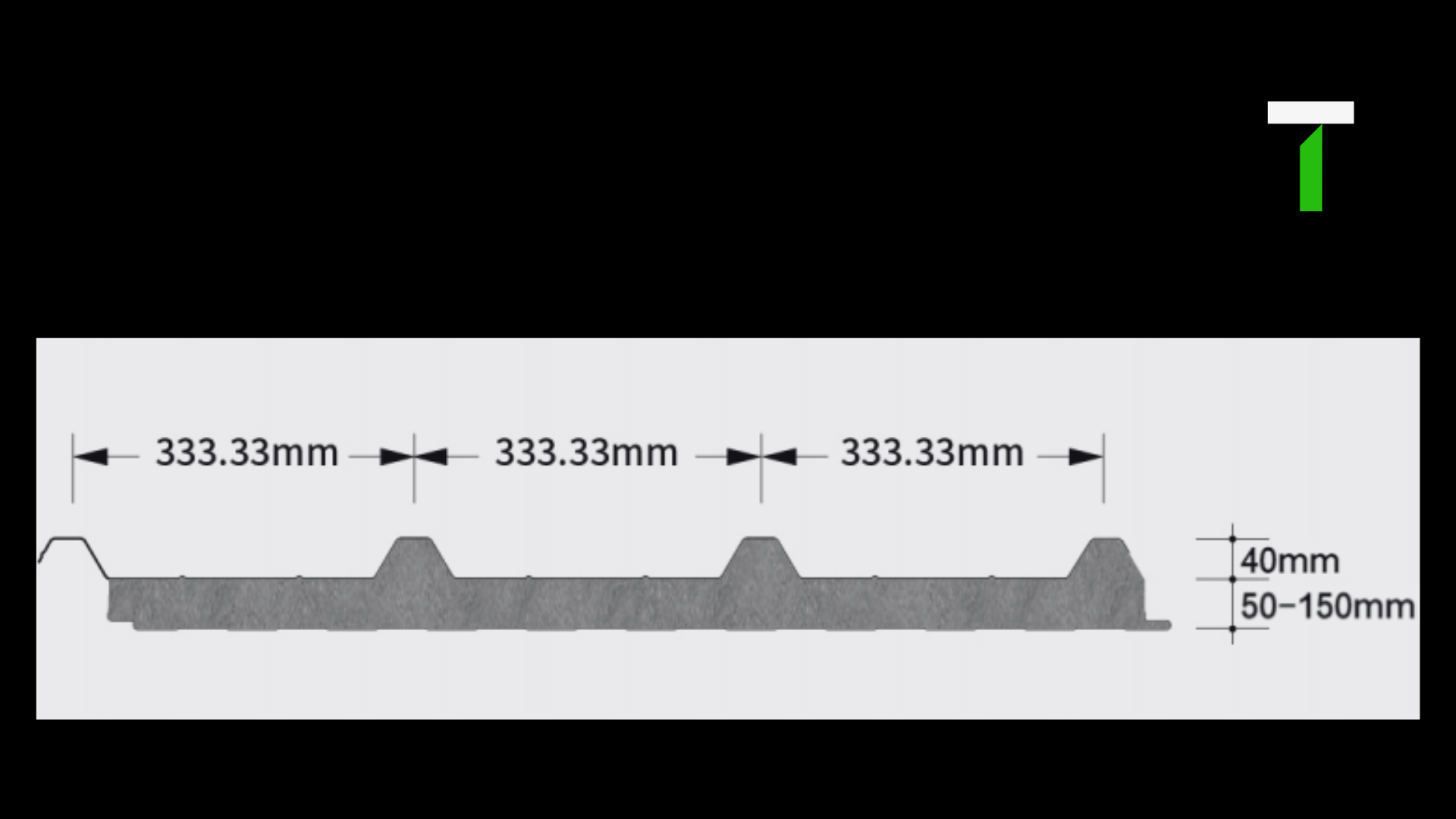

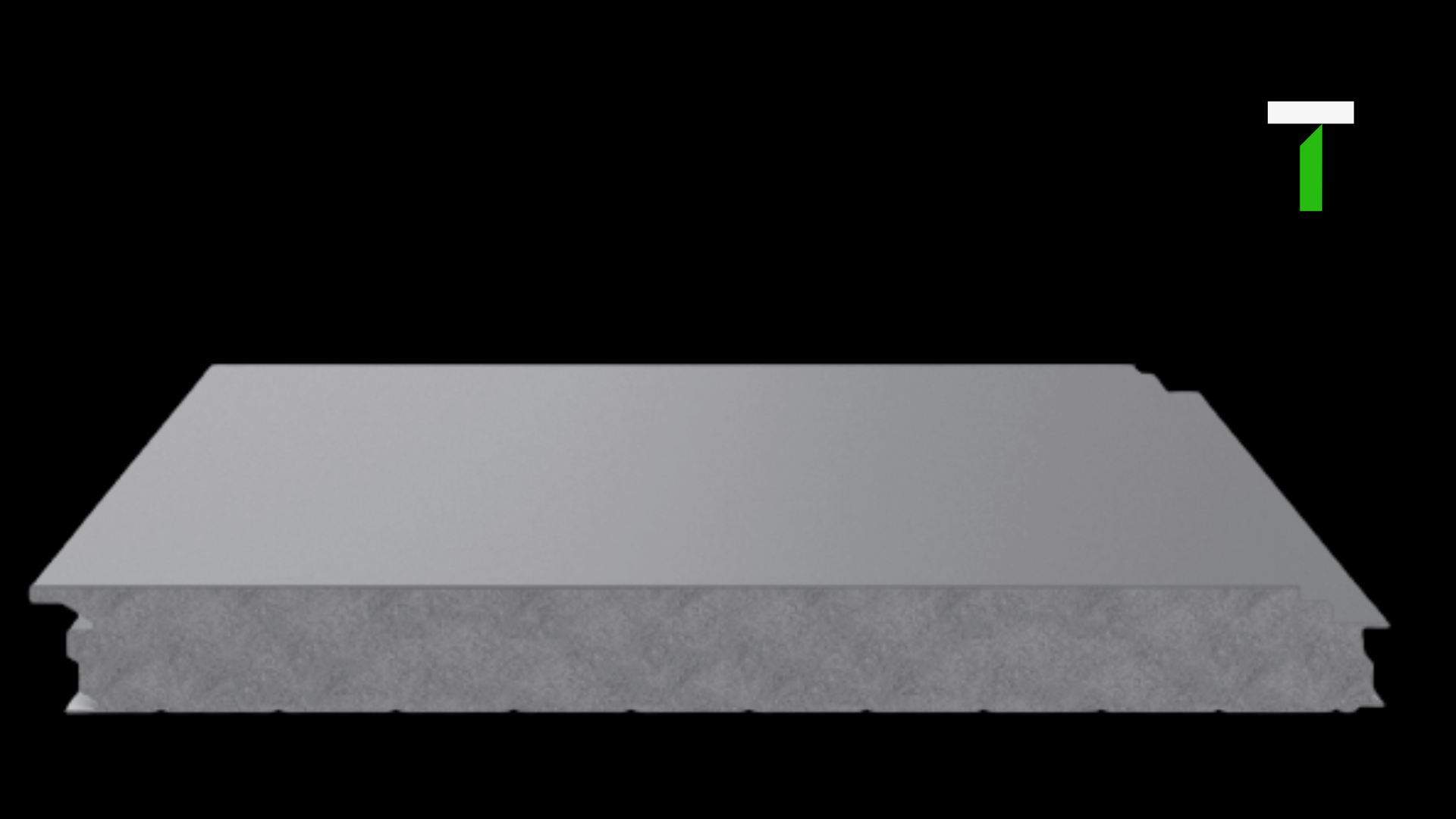

SDP-ROOF-RW is the mineral wool roof panels RW. They are appropriate for buildings, where high fire resistance is required. Roof panels which cover 1000 mm of surface enable an easy and quick assembly for various types of structures with the use of appropriate screws. Specifically designed and profiled tongue and groove joints guarantee a very good tightness and make the whole structure fireproof.
Product Features:
The cover width provided to our customers limits in 500-1000 mm.
Thickness: 50 mm, 60 mm, 80 mm, 100 mm, 120 mm, 150 mm, 180 mm, 200 mm,available for our customers.
SDpanel adopts a sandwich panel with appropriate rock wool, the fire endurance scope within 30-270 minutes or more.
The standard SDpanel is 3 m to 12.5 m in height; we also provide our customers with short ornormal panels. Considering the weight of mineral wool, we do not recommend too long.
Our insulated wall panels are designed for rapid on-site installation without compromising quality. With modular construction and streamlined logistics, we cut lead times and help keep your project on schedule — or ahead of it.
Tectra Systems offers advanced insulated wall panels designed for both general construction and specialized cold storage applications. With PIR core technology at the heart of each panel, our solutions deliver exceptional thermal performance, fire resistance, and structural integrity—tailored to meet the unique needs of your project.
Ideal for a wide range of building envelopes, our sandwich panels combine insulation performance with structural strength.
Precision-built for cold storage and temperature-controlled environments.Engineered to meet the strict demands of refrigeration, these panels ensure energy efficiency and hygienic performance.
Our team is ready to provide a tailored quote with clear lead times and competitive pricing.
